Mini format – mega strong! The Minilift S fits in anywhere due to its small size and impresses with its performance in many areas. The variable inlet and connection options make it a space-saving all-rounder for sewage-free wastewater, whether for free-standing or underfloor installation.
A lifting station for restricted use can handle the lot despite its small size. There are several connection options available. A choice of three different pump capacities is available depending on how much power is required – also resistant to hot water and brine.
Application possibilities
But it's got the lot: The Minilift S fits in anywhere due to its small size and impresses with its performance in many areas. The variable inlet and connection options make it a space-saving all-rounder for sewage-free wastewater. Where can it play out its strengths? For example, in the following situations:
The Minilift S plays out its functional strengths in utility rooms. A water softener, backwash filter or heating system can be connected without any problems (version "resistant").
A talented solution for the office: The Minilift S lifting station can easily find a place under the worktop in small office kitchens.
A clean matter: The Minilift S is a practical solution for washing machines and washbasins in laundry rooms.
The Minilift S is ideal for renovations in small bathrooms next to a hobby room or in a workshop.
The Minilift S lifting station for restricted use also impresses as floor slab installation and blends seamlessly into the tile pattern of the basement floor.
Inlets and connections

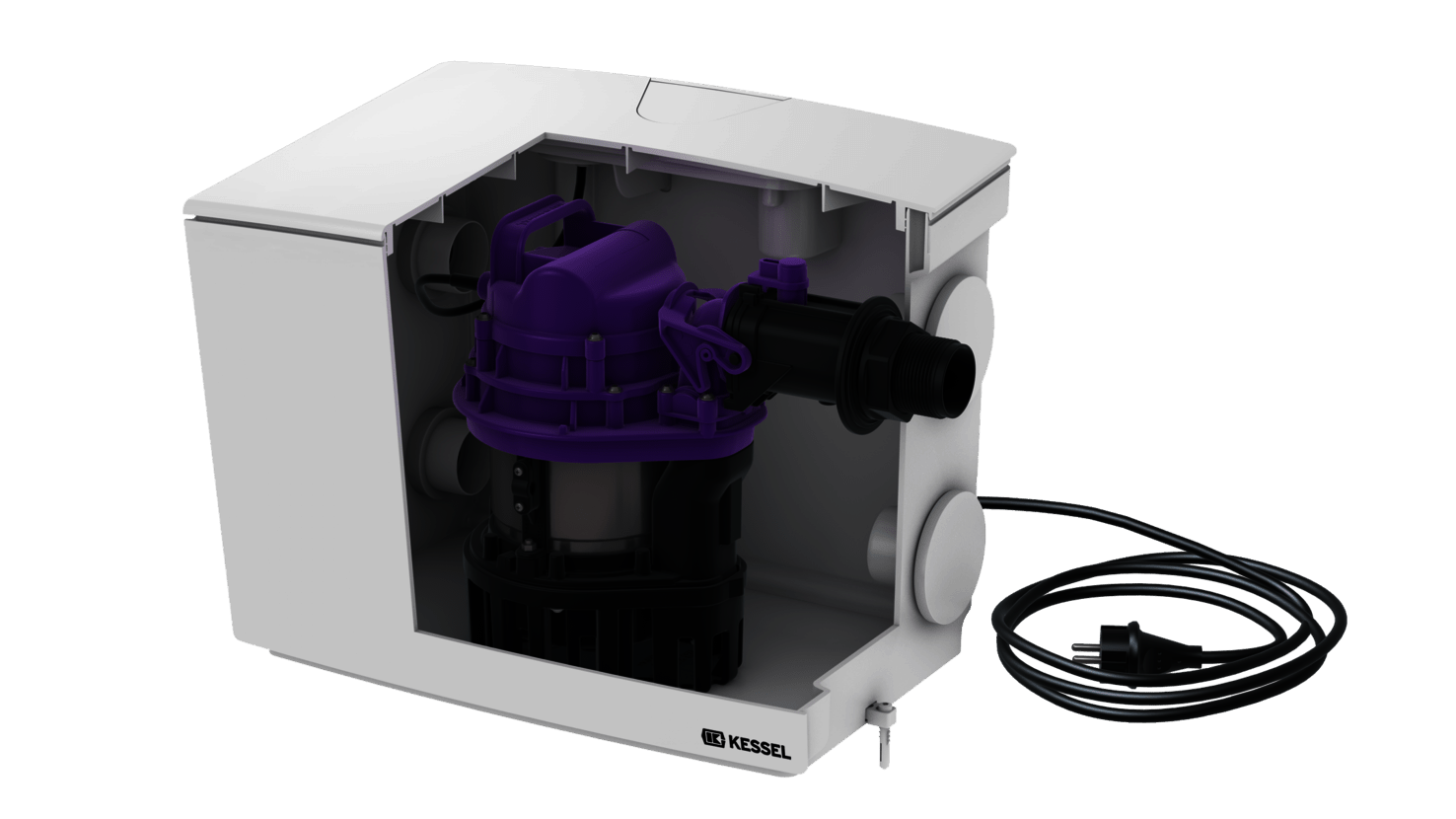

The new Minilift S installed above ground has a pressure pipe connection that can either be on the left or right. A washing machine, shower and 3 further inlets can all be connected at the same time. The Minilift S is delivered plug-in ready with 300, 500 or 1000 watt pumps with float switch control.
Adjustable pumping volume
The height-adjustable float switch of the Minilift S can be fixed in two different positions. In this way, the pumping volume can be adapted to the amount of wastewater generated.
The advantage: You can therefore influence the filling level from which the lifting station for restricted use starts to pump.
Floor slab installation
The Minilift S is an almost invisible lifting station if it is installed in the floor slab. The integrated drain in the cover handles basement surface water. Even in the event of a pipe burst or flooding, the Minilift S continually pumps away the wastewater keeping the basement rooms dry.
Lifting station Minilift S
Installation situation: floor slab installation | |||||
| Type of cover | Pump | Operating voltage | Item no. | ||
|---|---|---|---|---|---|
280570S | Cover plate with slotted cover | KTP 300 | 230 VLT | 280570S | Show |
280570SC | Cover plate with slotted cover | 230 VLT | 280570SC | Show | |
280570X | tileable cover plate | KTP 300 | 230 VLT | 280570X | Show |
280570XC | tileable cover plate | 230 VLT | 280570XC | Show | |
Installation situation: free-standing set-up | |||||
| Type of cover | Pump | Operating voltage | Item no. | ||
28561 | - | KTP 300 | 230 VLT | 28561 | Show |
28561C | - | 230 VLT | 28561C | Show | |
28562 | - | GTF 500 | 230 VLT | 28562 | Show |
28562C | - | GTF 500 resistant | 230 VLT | 28562C | Show |
28563 | - | GTF 1000 | 230 VLT | 28563 | Show |
28563C | - | GTF 1000 resistant | 230 VLT | 28563C | Show |
