Hybrid lifting station Ecolift XL

The powerful version for commercial applications and multi-family homes

Hybrid lifting station Ecolift XL, dry installation

The Ecolift XL is a larger and more powerful version of the Ecolift. The hybrid lifting station is, therefore, ideal for commercial buildings and multi-family homes.

With a power rating of up to 4.5 kW, the Ecolift XL can reliably pump the wastewater away even working against the backwater pressure. Up to two motor-driven closure systems provide the closure to the sewer. However, this is only necessary in the event of backwater. In normal operation, it does not pump and instead makes use of the natural gradient.

The Ecolift XL is installed exposed or in an underground engineering chamber. It is available with various pump performance classes, some for a 230 V connection, some for 400 V. The variants with one motor-driven closure system are suitable for grey water and those with two for black water.

Advantages  Article overview

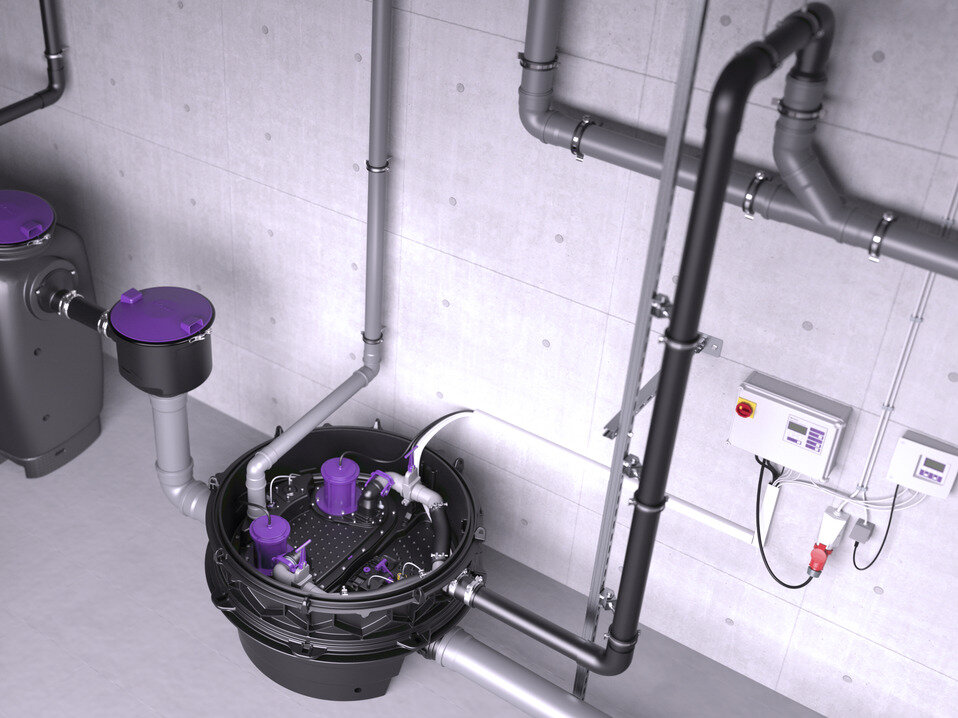

Installation diagram for hybrid lifting station Ecolift XL connected to a grease separator

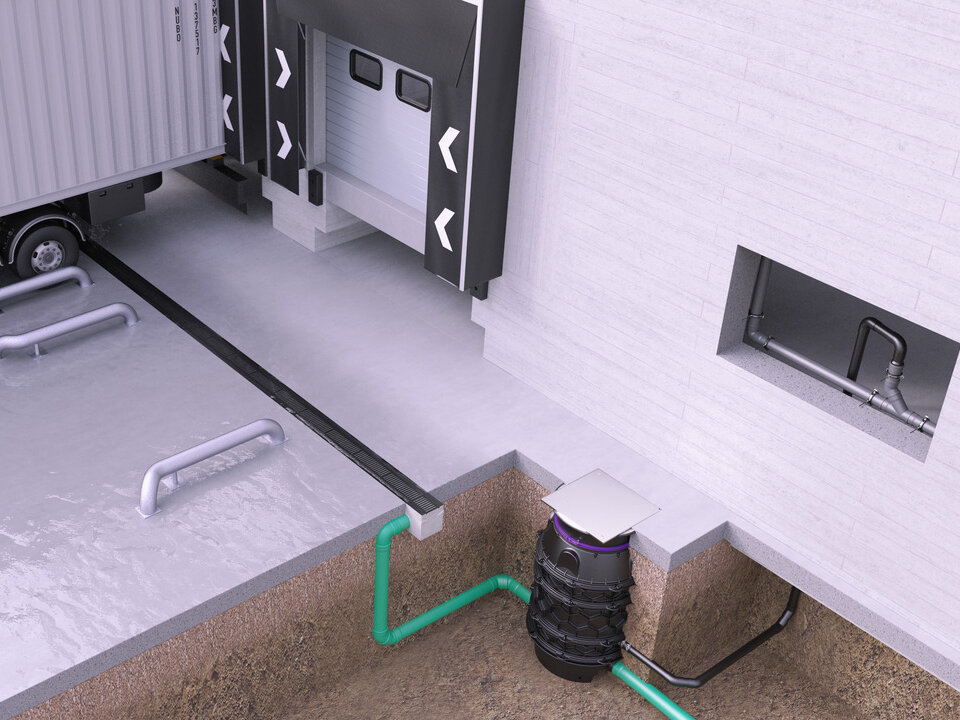

Installation diagram for hybrid lifting station Ecolift XL for surface drainage
Hybrid lifting station Ecolift XL, for very low installation, dry installation
Pumping performance diagram for Ecolift XL

Direct drainage

Hybrid lifting stations use direct drainage, the natural slope to the sewer. Wastewater is only disposed of by a pump in the event of backwater. This direct route is economical, safe and quiet because hybrid lifting stations work most of the time without power and always without interruptions in operation. They have significantly lower pump wear and only make pump noise in an emergency.

DGNB logo

Sustainability confirmed by experts

The Ecolift's energy consumption is 90% lower compared to conventional lifting stations and at the same time higher operational reliability is also convincing for sustainability experts: At the DGNB Sustainability Challenge, the annual prize competition run by the German Society for Sustainable Building, our hybrid lifting station was ranked among the top 3 product and service innovations of the year. This confirms to us that the “direct route” is the right one!

hybrid lifting station with two motorized flaps

Safety

The Ecolift XL not only has particularly powerful pumps but also has up to two motor-driven closure systems, which ensure a reliable separation between the sewer and the building in the event of backwater. The pneumatic level measurement and an alarm sensor guarantees additional safety.

Hybrid lifting station Ecolift XL with an engineering chamber upper section

Flexible installation

Thanks to the modular construction and the large selection of chamber modules and upper sections, the Ecolift XL can be installed exposed, underground or also in concrete. The modules are groundwater-resistant to a depth of 3,000 mm.

Ecolift XL

Note on installation depth: Version for deeper installation

Number of pumps: 1

Operating voltagePumpType of wastewaterNumber of motor-driven backwater flaps Item no.
8741006 230  VLT SPF 1400 wastewater without sewage 1 8741006
Show
8741007 400  VLT SPF 1500 wastewater without sewage 1 8741007
Show
8741008 400  VLT SPF 3000 wastewater without sewage 1 8741008
Show
8741009 400  VLT SPF 4500 wastewater without sewage 1 8741009
Show
8741010 230  VLT SPF 1400 wastewater with and without sewage 2 8741010
Show
8741011 400  VLT SPF 1500 wastewater with and without sewage 2 8741011
Show
8741012 400  VLT SPF 3000 wastewater with and without sewage 2 8741012
Show
8741013 400  VLT SPF 4500 wastewater with and without sewage 2 8741013
Show

Number of pumps: 2

Operating voltagePumpType of wastewaterNumber of motor-driven backwater flaps Item no.
8741022 230  VLT SPF 1400 wastewater without sewage 1 8741022
Show
8741023 400  VLT SPF 1500 wastewater without sewage 1 8741023
Show
8741024 400  VLT SPF 3000 wastewater without sewage 1 8741024
Show
8741025 400  VLT SPF 4500 wastewater without sewage 1 8741025
Show
8741026 230  VLT SPF 1400 wastewater without sewage 1 8741026
Show
8741027 400  VLT SPF 1500 wastewater without sewage 1 8741027
Show
8741028 400  VLT SPF 3000 wastewater without sewage 1 8741028
Show
8741029 400  VLT SPF 4500 wastewater without sewage 1 8741029
Show
8741030 230  VLT SPF 1400 wastewater with and without sewage 2 8741030
Show
8741031 400  VLT SPF 1500 wastewater with and without sewage 2 8741031
Show
8741032 400  VLT SPF 3000 wastewater with and without sewage 2 8741032
Show
8741033 400  VLT SPF 4500 wastewater with and without sewage 2 8741033
Show
8741034 230  VLT SPF 1400 wastewater with and without sewage 2 8741034
Show
8741035 400  VLT SPF 1500 wastewater with and without sewage 2 8741035
Show
8741036 400  VLT SPF 3000 wastewater with and without sewage 2 8741036
Show
8741037 400  VLT SPF 4500 wastewater with and without sewage 2 8741037
Show

Note on installation depth: Version with lowest installation height

Number of pumps: 1

Operating voltagePumpType of wastewaterNumber of motor-driven backwater flaps Item no.
8741044 230  VLT SPF 1400 wastewater without sewage 1 8741044
Show
8741045 400  VLT SPF 1500 wastewater without sewage 1 8741045
Show
8741046 400  VLT SPF 3000 wastewater without sewage 1 8741046
Show
8741047 400  VLT SPF 4500 wastewater without sewage 1 8741047
Show
8741048 230  VLT SPF 1400 wastewater with and without sewage 2 8741048
Show
8741049 400  VLT SPF 1500 wastewater with and without sewage 2 8741049
Show
8741050 400  VLT SPF 3000 wastewater with and without sewage 2 8741050
Show
8741051 400  VLT SPF 4500 wastewater with and without sewage 2 8741051
Show

Number of pumps: 2

Operating voltagePumpType of wastewaterNumber of motor-driven backwater flaps Item no.
8741060 230  VLT SPF 1400 wastewater without sewage 1 8741060
Show
8741061 400  VLT SPF 1500 wastewater without sewage 1 8741061
Show
8741062 400  VLT SPF 3000 wastewater without sewage 1 8741062
Show
8741063 400  VLT SPF 4500 wastewater without sewage 1 8741063
Show
8741064 230  VLT SPF 1400 wastewater without sewage 1 8741064
Show
8741065 400  VLT SPF 1500 wastewater without sewage 1 8741065
Show
8741066 400  VLT SPF 3000 wastewater without sewage 1 8741066
Show
8741067 400  VLT SPF 4500 wastewater without sewage 1 8741067
Show
8741068 230  VLT SPF 1400 wastewater with and without sewage 2 8741068
Show
8741069 400  VLT SPF 1500 wastewater with and without sewage 2 8741069
Show
8741070 400  VLT SPF 3000 wastewater with and without sewage 2 8741070
Show
8741071 400  VLT SPF 4500 wastewater with and without sewage 2 8741071
Show
8741072 230  VLT SPF 1400 wastewater with and without sewage 2 8741072
Show
8741073 400  VLT SPF 1500 wastewater with and without sewage 2 8741073
Show
8741074 400  VLT SPF 3000 wastewater with and without sewage 2 8741074
Show
8741075 400  VLT SPF 4500 wastewater with and without sewage 2 8741075
Show
Individual solutions, plant construction employees

Not found the right product?

In addition to our standard hybrid lifting stations, we develop individual solutions for special requirements in terms of form, function and dimensioning at the customer's request.
